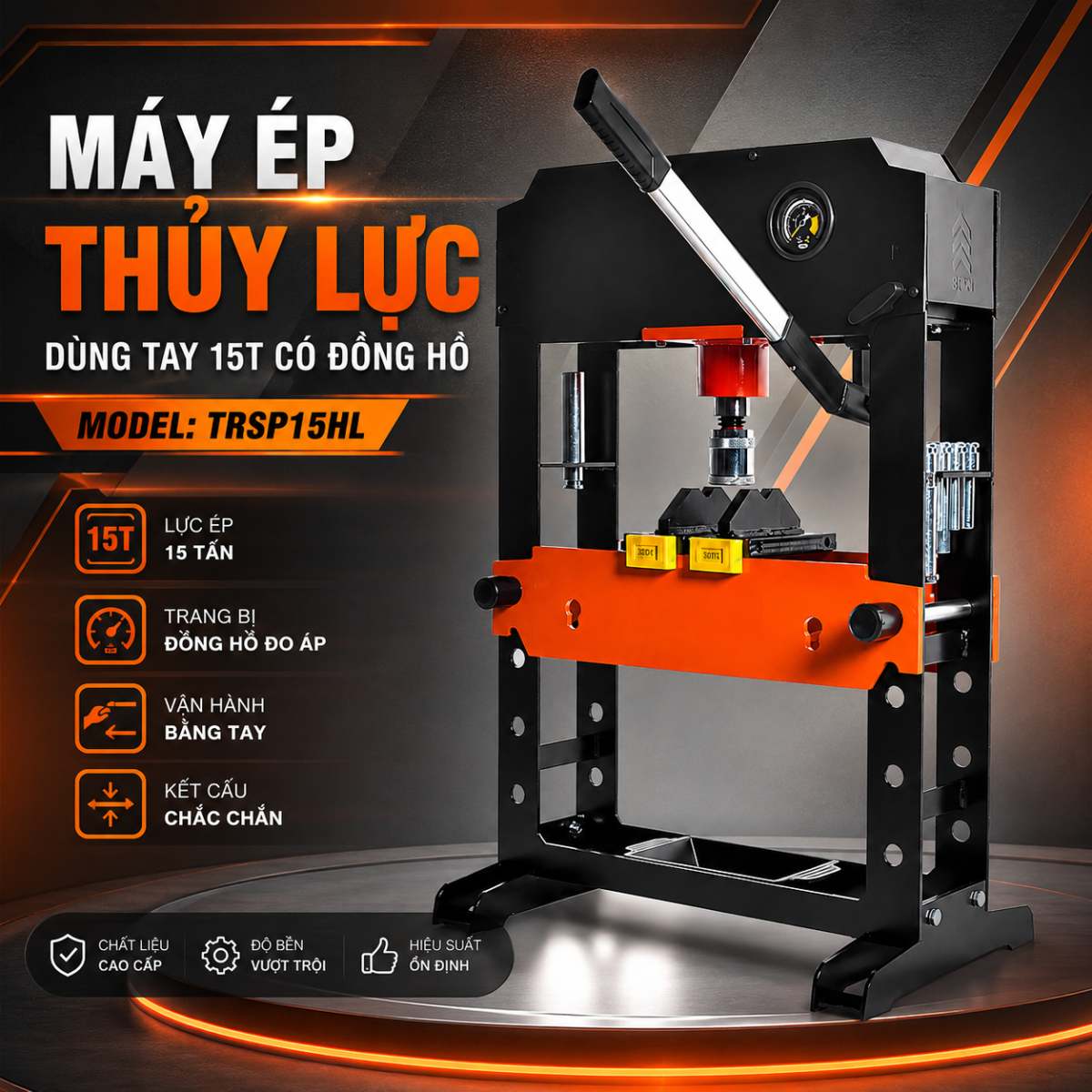

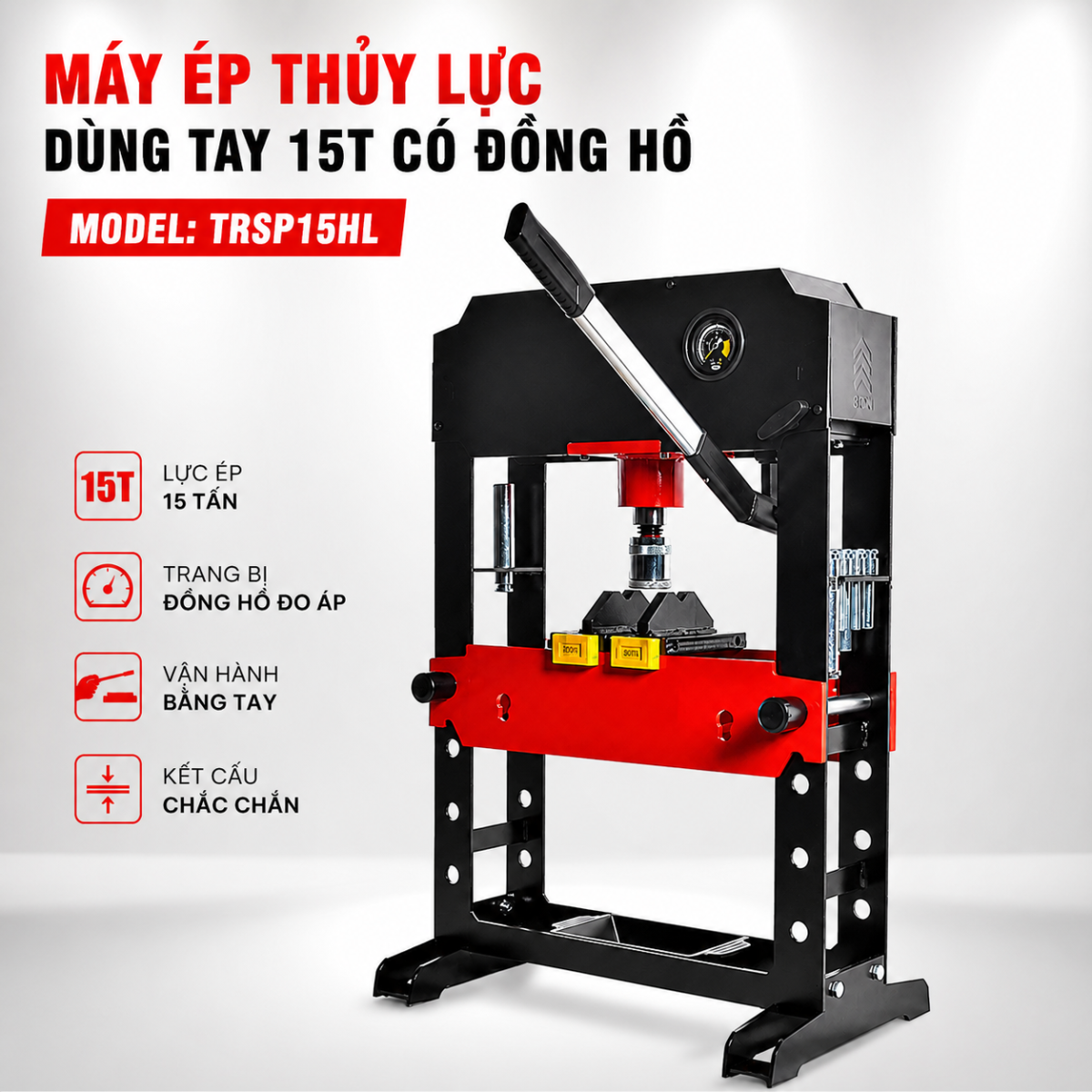

Hydraulic Hand Press 15T with Gauge MODEL: TRSP15HL

TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge – Precision Pressing Equipment for Garages and Mechanical Workshops

Are you looking for a compact yet powerful hydraulic press to dismount/mount bearings, press bushings, straighten mechanical components, or maintain machinery assemblies? Do you want to precisely monitor pressing force to prevent damaging parts during repair? The TRSP15HL 15-ton manual hydraulic press with pressure gauge is the ideal solution for auto repair shops, mechanical workshops, and professional maintenance centers.

With a pressing capacity of up to 15 tons, a sturdy steel frame, and an integrated pressure gauge, the TRSP15HL enables users to easily monitor applied force during operation, ensuring high efficiency, safety, and precision. It is suitable for small to medium pressing jobs with a reasonable investment cost.

Key Applications of TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

• Removing and installing various types of bearings and bushings.
• Pressing bushings, shafts, and mechanical gears.
• Straightening bent or warped metal parts.
• Pressing ball joints, rubber bushings, and automotive suspension components.
• Maintaining mechanical equipment and industrial machinery.
• Supporting repairs of automobiles, motorcycles, agricultural machinery, and construction equipment.

Advantages of Using TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

• 15-ton powerful force: Meets diverse mechanical repair needs.
• Pressure gauge: Enables accurate monitoring of pressing force during operation.
• Hand pump system: Simple manual operation without electricity or compressed air.
• Heavy-duty steel frame: Resists deformation under heavy loads.
• Compact design: Fits well in space-limited workshops and garages.
• Adjustable bed height: Flexible adjustment according to workpiece size.
• Easy maintenance: Low operational cost.
• Stable performance: Long lifespan.

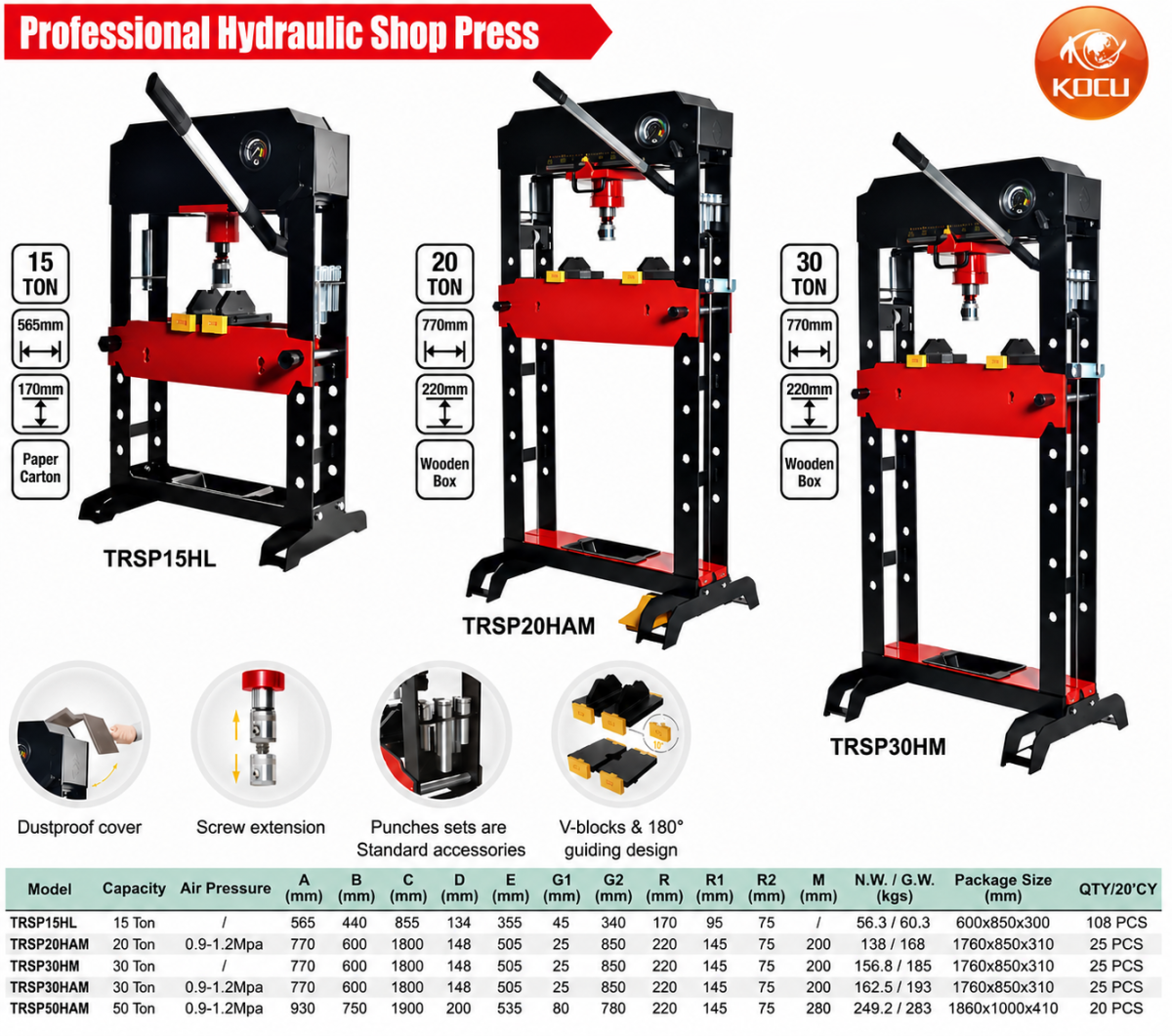

Technical Specifications of TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

• Model: TRSP15HL
• Product Code: TRSP15HL
• Maximum Capacity: 15 Tons
• Operation Method: Manual Hydraulic Pump
• Pressure Gauge: Included
• Piston Stroke: 170 mm
• Pressing Range: 0 – 340 mm
• Distance Between Columns: 440 mm
• Overall Width: 565 mm
• Overall Height: 855 mm
• Body Depth: 134 mm
• Overall Depth: 355 mm
• Net Weight: 56 kg
• Gross Weight: 58 kg
• Package Dimensions: 600 × 850 × 300 mm

Operating Principle of TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

• The press operates based on Pascal 's Law, where force applied to the hand pump creates pressure within the hydraulic oil system. This pressure transfers to the hydraulic cylinder, generating up to 15 tons of pressing force to press or disassemble mechanical parts.
• The integrated pressure gauge helps users monitor and control pressing force at every stage, ensuring accuracy and preventing part damage during operation.

Product Applications of TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

• Automotive and motorcycle repair shops.
• Mechanical manufacturing workshops.
• Equipment manufacturing and maintenance plants.
• Agricultural machinery repair centers.
• Precision mechanical processing workshops.
• Technical vocational training centers.

Instructions for Use of TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

1. Place the machine on a flat and solid surface.
2. Adjust the press bed according to the workpiece size.
3. Align the workpiece correctly under the ram.
4. Pump the handle slowly to extend the piston and apply force.
5. Monitor the pressure gauge continuously during operation.
6. Fully release the pressure after completing the task.

Assembly Guide for TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

1. Assemble the machine frame following the manufacturer 's manual.
2. Tighten all connecting bolts securely.
3. Install the pressure gauge in its correct position.
4. Check the hydraulic oil level before operation.
5. Perform a no-load test run to check system functionality.

Maintenance Instructions for TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

• Clean thoroughly after each use.
• Inspect and top up hydraulic oil regularly.
• Store in a dry place, away from humid environments.
• Lubricate moving joints periodically.
• Inspect the pressure gauge and hydraulic system frequently.

Precautions When Using TRSP15HL 15-Ton Manual Hydraulic Press with Pressure Gauge

• Do not exceed the maximum capacity of 15 tons.
• Center the workpiece under the force axis to prevent off-center loading.
• Never stand directly facing the workpiece during pressing.
• Inspect the frame and cylinder condition before use.
• Wear safety glasses, gloves, and protective footwear.

Frequently Asked Questions (FAQ)

• Is the 15-ton press suitable for automotive repair shops?
  Yes. The 15-ton capacity effectively handles pressing bearings, rubber bushings, ball joints, and many mechanical parts in auto repair shops.
• Is the weight of 56 kg easy to move?
  Yes. It features a compact design compared to larger capacity presses, making it easy to arrange and move within the workshop as needed.
• What is the benefit of having a pressure gauge?
  The gauge allows real-time pressure monitoring, supporting precise operation and reducing the risk of damaging workpieces.
• Does a manual press require electricity or compressed air?
  No. It operates entirely on a hydraulic hand pump system, so it can be used anywhere without relying on power sources or air compressors.

Contact us today to own the authentic TRSP15HL 15-ton manual hydraulic press with pressure gauge at a competitive price, boosting repair efficiency and optimizing productivity for your garage or workshop!
